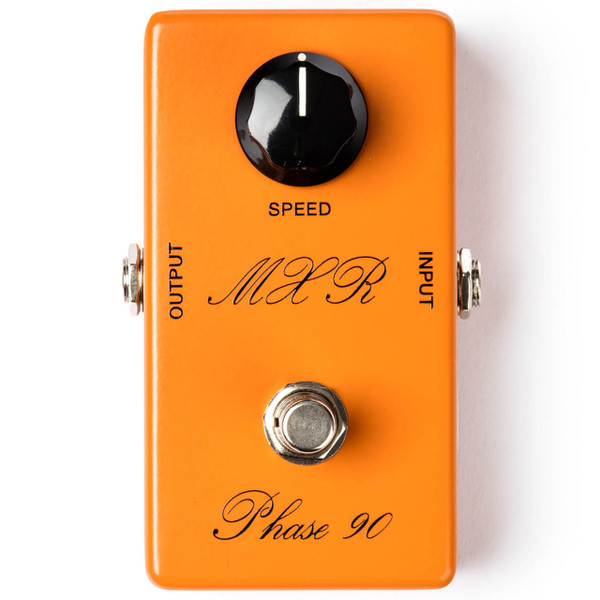

MXR CSP026 '74 Vintage Phase 90 Effects Pedal

The MXR CSP026 '74 Vintage Phase 90 Effects Pedal is a faithful reissue of the original, featuring hand-matched FETs and a hand-wired circuit board.

The MXR Phase 90 set the benchmark for phasers, with its thick and rich tone. Our in-house work horse, purchased in 1974, was meticulously spec'd and recreated as the '74 Vintage Phase 90. The hand-wired board features select resistors paired with hand-matched FETs to achieve the same smooth and warm modulation as the original. The '74 Vintage Phase 90 comes housed in the classic orange finished box and is adorned with the unmistakable Script logo.

This pedal can only be powered by one 9-volt battery (not included).

Features:

• Hand-wired circuit board built with original-spec 1974 components
• Original high-quality Switchcraft Input/Output jacks and Carling bypass switch
• Hand-selected FETs, matched to produce deep and rich phasing
• All analog circuitry for warm analog tone
• Footswitch toggles effect on/bypass
• Speed knob regulates overall effect rate
• Powered by one 9V battery

Specifications:

• Input Impedance: 470 kΩ
• Output Impedance: 10 kΩ
• Max Input Level: -5 dBV
• Signal to Noise Ratio: > 95 dB
• Current Draw: 2.2 mA
• Power Supply: 9 volt battery
• UPC: 710137038288
• SKU: MXR-CSP026
• MPN: CSP026
